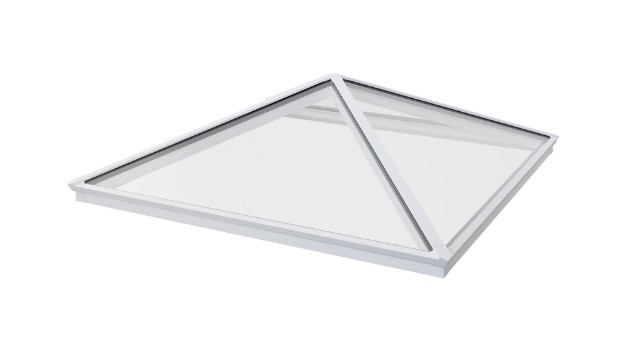

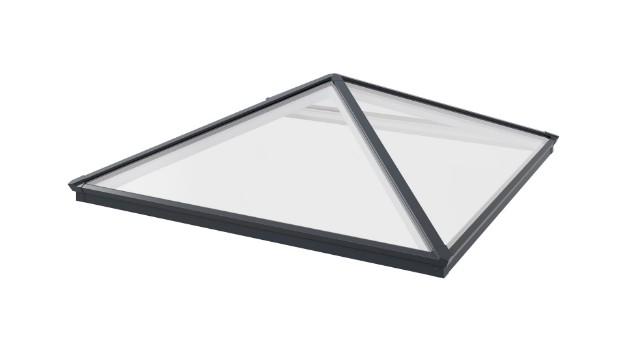

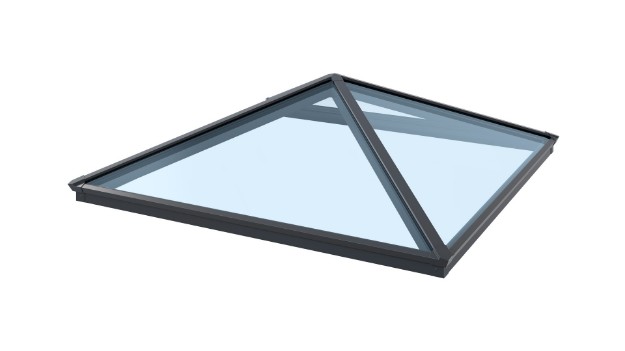

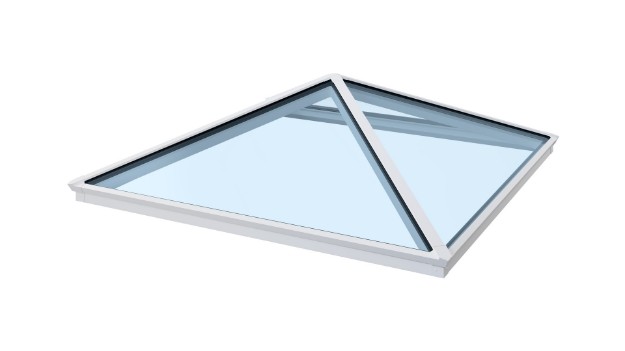

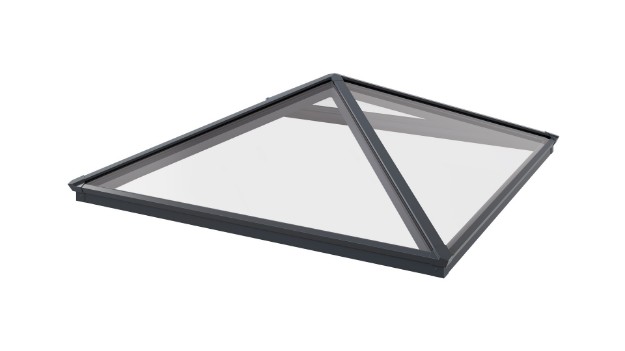

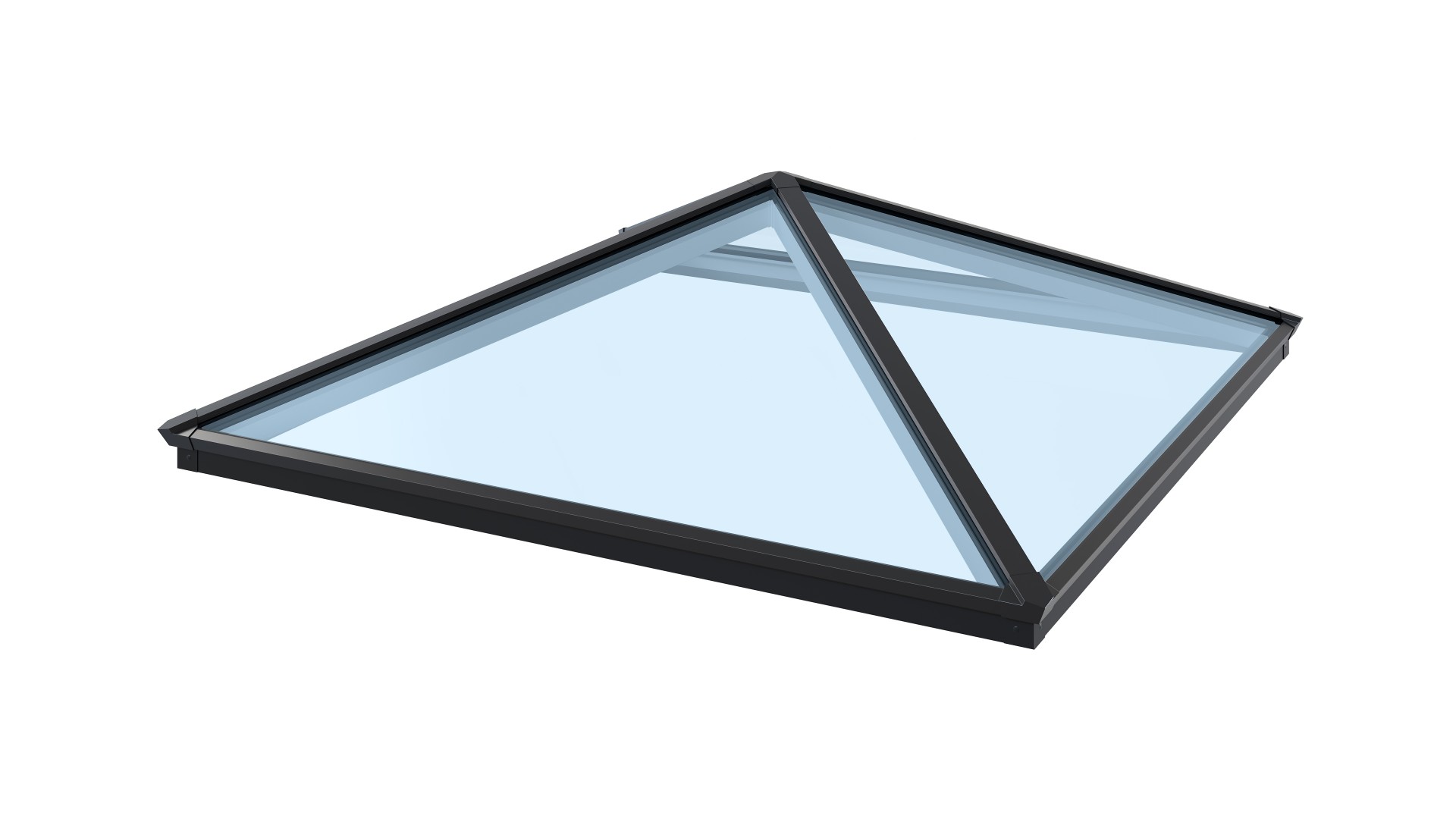

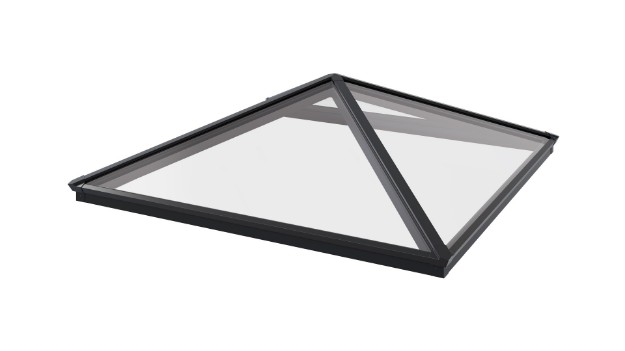

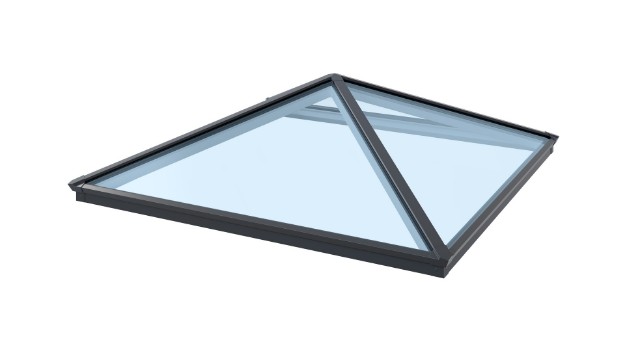

Pyramid Lantern

Make a bold design statement with this sleek pyramid roof lantern, expertly built to maximise overhead light while adding striking geometry to kitchens, living areas, and orangery extensions.

Size *
Panes *
Tint *
Frame *

Ex.VAT £900.31

inc.VAT £1080.37

+ -

Overview

The Brett Martin Pyramid Lantern is a sleek, high-performance rooflight designed to flood interior spaces with natural light while making a bold architectural statement.

Its symmetrical pyramid design and minimalist aluminium frame offer a contemporary edge for flat roof applications. Manufactured with a laminated inner glass pane as standard and engineered for thermal efficiency, this stylish lantern is ideal for both residential and commercial buildings.

With a wide range of custom sizes and frame colour options, the Pyramid Lantern provides the perfect blend of form and function, all backed by Brett Martin's trusted quality.

Benefits & Features

Benefits

Contemporary pyramid rooflight maximising daylight with a distinctive architectural form.
Slender powder-coated aluminium frame with clean sight lines and low-profile junctions.
Laminated inner glazing pane included as standard for enhanced occupant safety.
Thermally broken frame paired with Low-E double glazing ensures year-round energy efficiency.
Easy-fit design for rapid installation with no silicone sealant required beyond roof junction.
Ten-year product warranty available.
Expected to remain fit for purpose for 20 years under normal conditions.
Glazing warranty of 5 years included.
Manufactured to ISO 9001 industry standards.
All components—including glass, aluminium, PVC, ABS, rubber, and stainless steel—are recyclable.

Features

Sizes: Available from 600 x 600 mm to 2500 x 2500 mm in 50 mm increments.
Format: 4-pane pyramid design as standard.
Tints:
- Clear self-clean (76% light transmission)
- Blue solar-control self-clean (52% light transmission)
Frames:
- Grey / White
- Grey / Grey
- Black / Black
- Black / White
- White / White
Glazing Spec: 4mm toughened outer pane + 6.8mm laminated inner pane (PVB interlayer), Low-E coated, argon-filled.
Sound Insulation: Achieves 35dB (Rw) airborne sound reduction.
Fire Classification:
- Class A to EN13501-1
- BROOF(t4) (as per UK Building Regulations)
Wind & Snow Resistance:
- Resists wind loads to 2400 N/m²
- Resists snow loads to 1200 N/m²
- Designed to install directly onto a weathered builder’s upstand (minimum 85 mm height)

Installation

The Pyramid Lantern is engineered for simple and secure installation on flat or low-pitch roofs. It is designed to be mounted directly onto a fully weathered and insulated builder’s upstand with no requirement for internal support framing.

Installation Guidelines:

Suitable for upstand pitches from 0° to 5° (note: pitches over 0° may create a “lopsided” appearance).
Minimum upstand height: 85 mm.
Detailed installation and maintenance guides available upon request.
Thermal fracture caution: Avoid placing blinds directly beneath the glazing, and choose light-coloured blinds positioned away from the glass to reduce risk of thermal stress fracture.

For a full step-by-step installation guide for the Glass Lantern on the builder’s upstand, watch the video below or download our installation guide here.

*Brett Martin Daylight Systems operates a policy of continuous product improvement and reserves the right to alter specifications at any time without notice. Every effort has been taken to ensure all details contained in this video are correct at the time of release but this video should be used only as a guide and does not in any way form part of a contract or warranty. It is the customer’s responsibility to ensure that the product is suitable for the actual conditions of use, which are beyond the control of Brett Martin Daylight Systems.
