Custom 6-Pane Glass Lantern
From
£853.13
ex. VAT
Based on the lowest‑priced size/spec. Price updates with selections

Made in the UK

10 yr warranty

3-5 day delivery

Your configuration

Custom 6-Pane Glass Lantern

From
£853.13
ex. VAT
Based on the lowest‑priced size/spec. Price updates with selections
1: Length Step 1 of 5
1: Length
mm Length must be between 600mm and 3250mm
2: Width Step 2 of 5
2: Width
mm Width must be between 600mm and 3150mm
3: Glass Type Step 3 of 5
3: Glass Type

Choose your glass type

Your glass choice affects safety and performance. Compare options below.

TGH / TGH
Toughened over Toughened
Standard
  • Cost-effective
  • Strong & durable
  • Breaks into small granules if damaged
TGH / LAM
Toughened over Laminated
Most popular
  • Cost-effective
  • Strong & durable
  • Breaks into small granules if damaged
  TGH / TGH TGH / LAM
Glass stays together when cracked
Typical cost
Recommended for living spaces

4: Glazing tint Step 4 of 5
4: Glazing tint
5: Frame Step 5 of 5
5: Frame

Sorry, the combination of options you have selected is not available. Please amend your choices and try again.

Dimensions must be 400mm apart.

Current configuration
From £853.13 ex. VAT
£1023.76 inc. VAT
Qty
Secure checkout

What happens next?

Order confirmed
Technical Reiview
Made to order
Free UK Delivery
Product overview

Custom 6-Pane Glass Lantern

Custom 6-Pane Brett Martin Roof Lanterns give you the freedom to create a roof lantern that perfectly fits your space. Choose your exact dimensions and customise with a range of glazing options, frame styles, and tint choices to match your unique aesthetic. With a slimline profile that lets in plenty of natural light, these lanterns create a bright, airy atmosphere.

✓
Product formatCustom 6-Pane Brett Martin Roof Lanterns give you the freedom to create a roof lantern that perfectly fits your space.
✓
Project suitabilityBrett Martin Roof Lanterns are designed with performance and safety in mind, featuring a toughened inner pane as standard with the option to upgrade to laminated inner panes for added protection and peace of mind.
✓
Available specificationSelect the size, glazing, frame, kerb or opening options offered in the configurator for this product.
✓
Check before orderingConfirm dimensions against the prepared opening, kerb or builder’s upstand and review the relevant delivery and installation guidance.

Product details

Custom 6-Pane Brett Martin Roof Lanterns give you the freedom to create a roof lantern that perfectly fits your space. Choose your exact dimensions and customise with a range of glazing options, frame styles, and tint choices to match your unique aesthetic. With a slimline profile that lets in plenty of natural light, these lanterns create a bright, airy atmosphere.

Brett Martin Roof Lanterns are designed with performance and safety in mind, featuring a toughened inner pane as standard with the option to upgrade to laminated inner panes for added protection and peace of mind. The thermally efficient double-glazed units and a simple installation process deliver a reliable, low-maintenance solution that keeps your room comfortable and dry.

Explore the potential of Custom Brett Martin Roof Lanterns and start designing your ideal roof lantern today!

Benefits & features

What this product offers

Brett Martin glass roof lanterns combine generous glazing, thermally broken aluminium framing and configurable safety-glass options to bring natural light into flat-roof extensions and living spaces.

✓
Natural daylightLarge glazed areas brighten the room below while maintaining a clean, architectural roofline.
✓

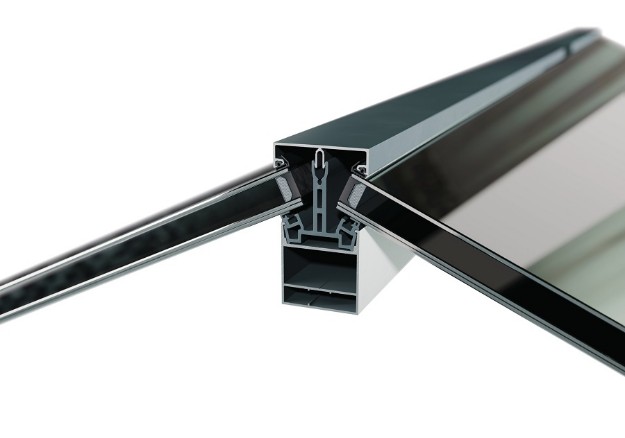

Thermally broken aluminiumStrong, durable framing is designed to reduce heat transfer while keeping the profile neat and refined.
✓
Choice of layoutChoose the relevant 4-pane, 6-pane or custom-size product to suit the proportions and character of the project.
✓
Choice of glassSelect from the safety-glass and tint options available in the product configurator for the chosen design.

More product details

UK manufacturedManufactured by Brett Martin Daylight Systems and supplied with a 10-year manufacturer warranty.
Good to knowAvailable sizes, pane layouts and glazing options depend on the selected product and final configuration. Dimensions refer to the external builder’s upstand.
Good to knowAvailable sizes and options depend on the final product configuration.
Installation guidance

Plan the installation

Roof lanterns should be installed onto a correctly prepared, weathered and insulated builder’s upstand. Use a competent contractor and follow the relevant installation guide.

✓
MeasureConfirm the external dimensions of the prepared opening, kerb or builder’s upstand.
✓
PrepareEnsure the supporting structure is square, level, insulated and fully weathered before installation.
✓
Plan accessArrange safe access, unloading, lifting and handling for the delivered frame and glazing.
✓
Follow the guideUse the official installation instructions for the selected product and configuration.

Product-specific installation details

Check accessPlan safe access, lifting and unloading for the delivered glass and frame.
Use the guideDownload and follow the official installation guide for the selected configuration.
Key measurement detailsProduct sizes refer to the external builder’s upstand. Do not alter the supplied glass or frame. Treat glazing as fragile during fitting.
Planning notePlanning permission and building-regulation requirements depend on the project. Check with your local authority where necessary.
Before work beginsCheck the selected product, site conditions and official installation guide before work begins.
Lead times & delivery

Roof Lantern ordering guide

Lead time depends on pane layout, glass type and size. Use the product-specific matrix below before ordering.

3–5 working daysListed 4-pane sizes with toughened clear glass.
5 working daysStarred listed 4-pane sizes with laminated clear glass.
15 working daysOther laminated, blue, unlisted and all 6-pane configurations.

4-pane lantern

Configuration Guide
Toughened clear, listed sizes 3–5 working days
Laminated clear, starred listed sizes 5 working days
Other laminated or blue; larger or unlisted sizes 15 working days

4-pane standard sizes (mm)

1500×1000* 2000×1000* 2500×1000 3000×1000
2000×1500* 2500×1500* 3000×1500* 2500×2000
3000×2000* — — —

6-pane lantern

Configuration Guide
Listed 6-pane sizes, toughened clear or blue 15 working days
Laminated 6-pane configurations 15 working days
1500×1000 2000×1000 2500×1000 3000×1000
2000×1500 2500×1500 3000×1500 2500×2000
3000×2000 — — —

Delivery and ordering

Maximum five same-size units per order. Orders should be placed before 12 noon. Free UK mainland kerbside delivery. Remote or restricted delivery areas require prior arrangement. Provide suitable access and help to receive and safely unload the lantern.
Please note

*Starred 4-pane sizes carry the five-working-day laminated-clear qualification. Bespoke sizes, larger quantities, unusual specifications and restricted postcodes require confirmation.

Product FAQs

Frequently asked questions

Clear answers to common questions about specification, glazing and installation.

What glass options are available?

Choose the available toughened-over-toughened or toughened-over-laminated configuration in the product selector.

What is the difference between laminated and toughened glass?

Laminated glass uses bonded layers and an interlayer that helps hold the glass together if damaged. Toughened glass is heat treated for strength and breaks into small pieces if damaged.

What is toughened-over-laminated glass?

It combines a toughened outer pane with a laminated inner pane for additional overhead safety where available.

When should I consider blue solar-control glass?

Blue solar-control glass can help reduce glare and solar heat gain on sun-exposed roofs. Contact the team if you need help selecting the specification.
