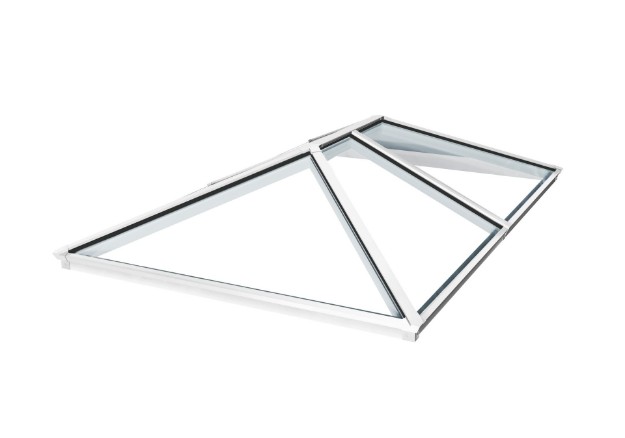

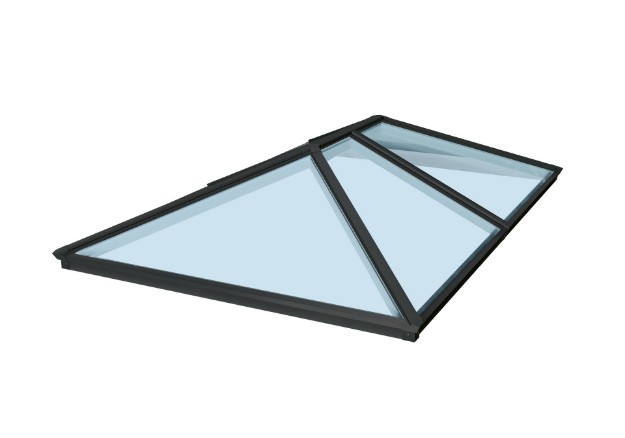

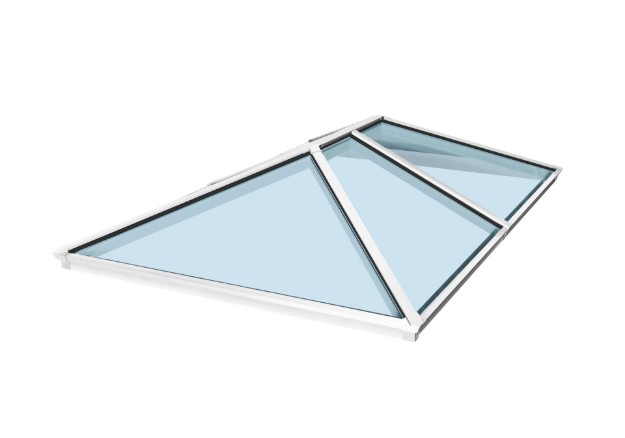

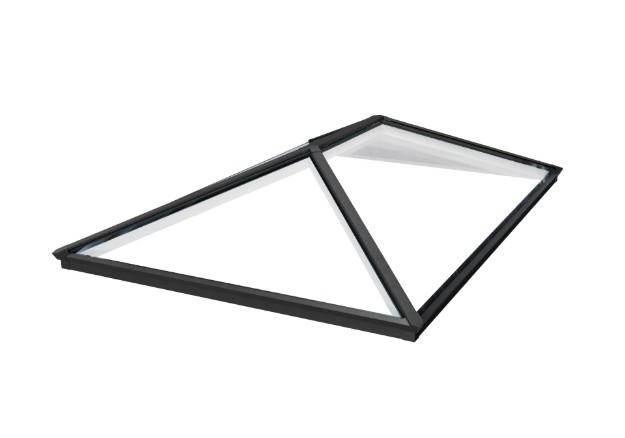

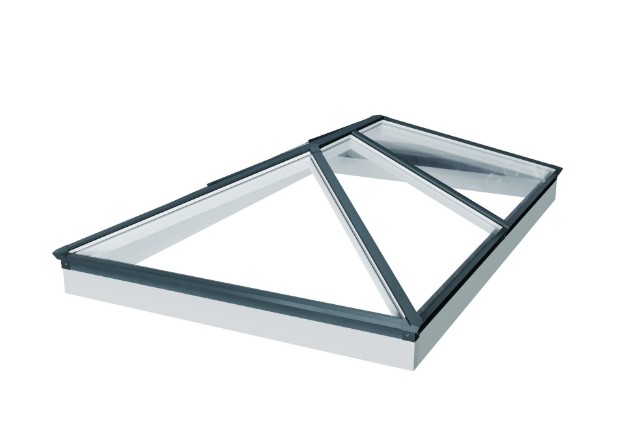

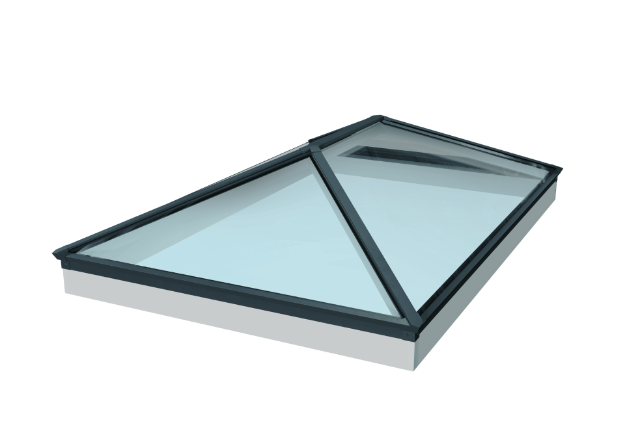

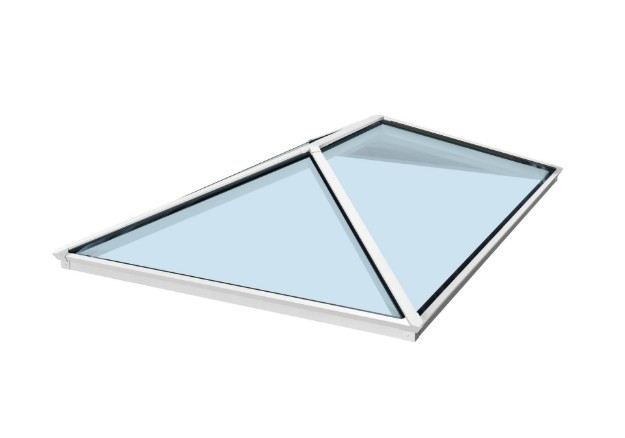

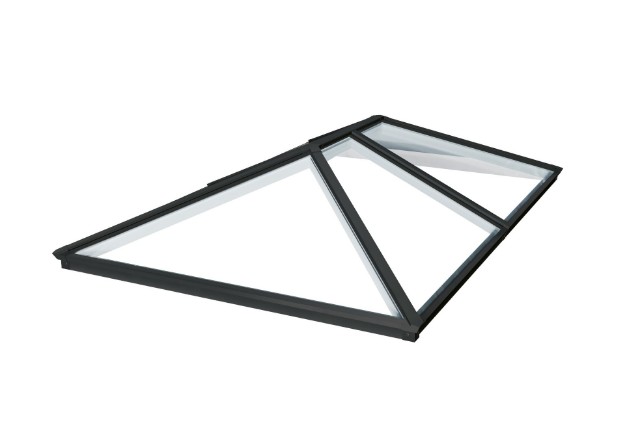

Custom Size Glass Roof Lantern

1 review

Create the perfect roof lantern for your space with custom sizes, styles, and glazing options – made to order by Brett Martin and engineered to deliver light, comfort, and long-lasting quality. Roof lanterns are supplied with a toughened inner pane as standard, with the option to upgrade to laminated inner panes for enhanced overhead safety.

10-year warranty plus free UK mainland delivery


*
mm Length must be between 1500mm and 3000mm
*
mm Width must be between 1000mm and 2000mm
*
*
*
£1274.00 ex. VAT
£1528.80 inc. VAT

Pricing not available for the entered dimensions

Sorry, the combination of options you have selected is not available. Please amend your choices and try again.

+ -

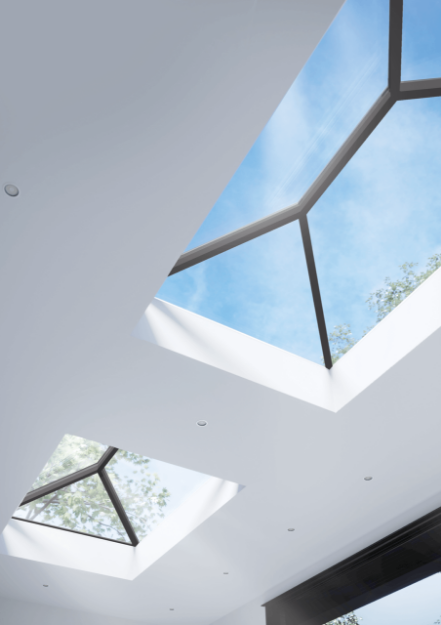

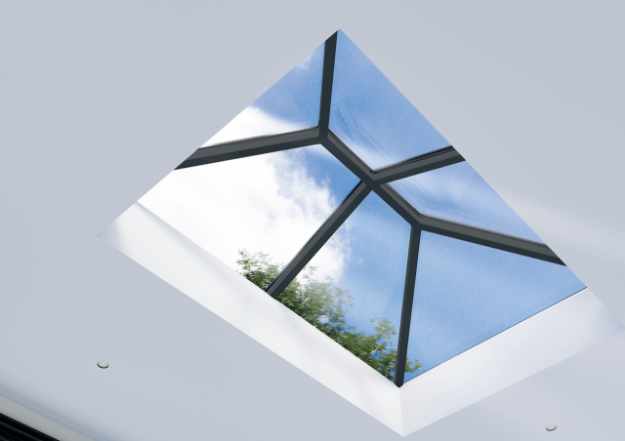

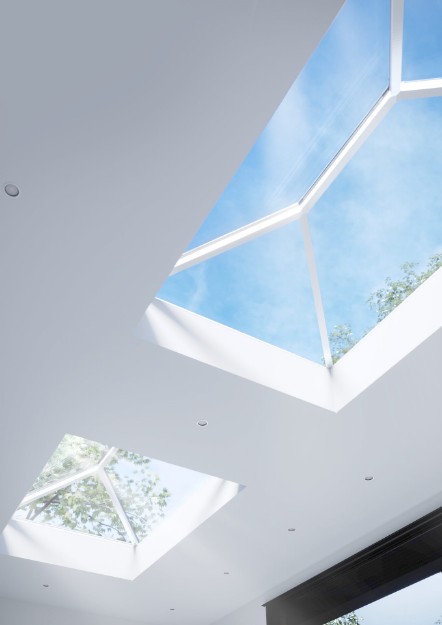

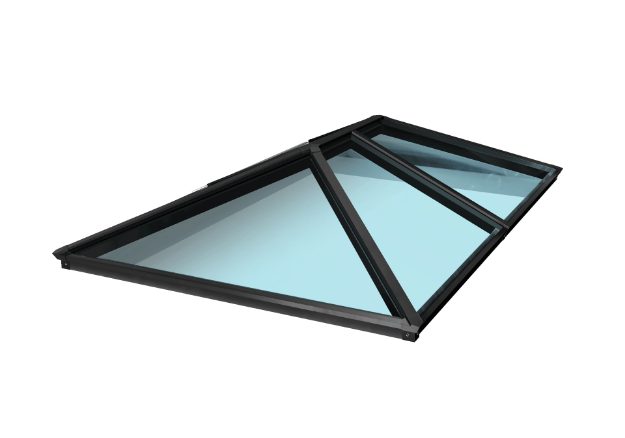

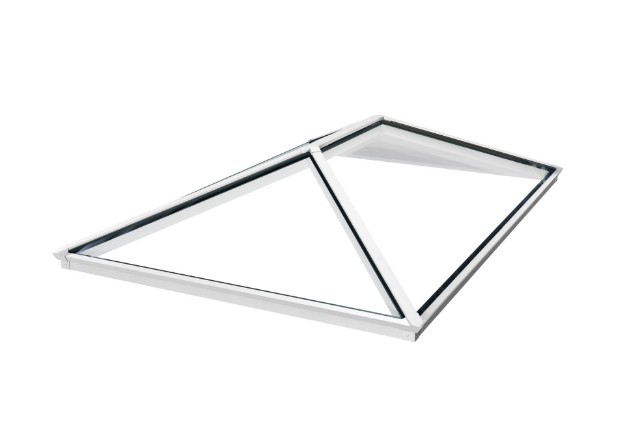

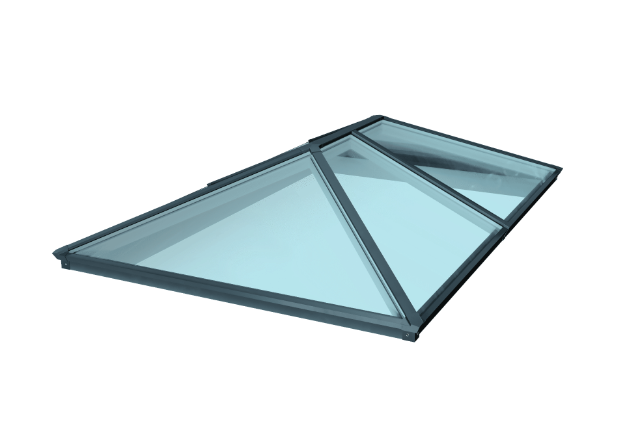

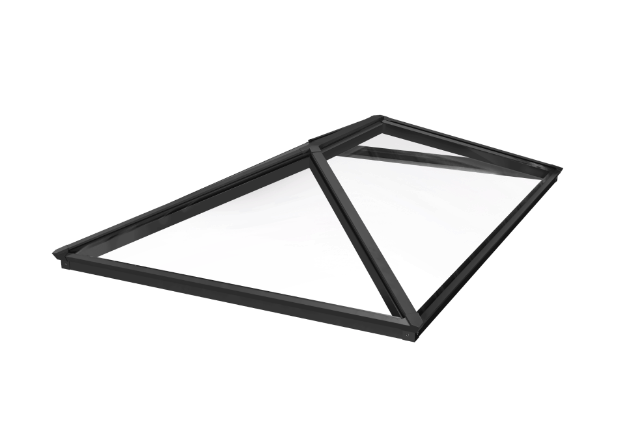

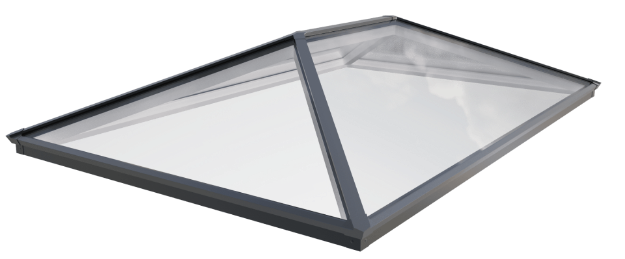

Custom 4-Pane Brett Martin Roof Lanterns give you the freedom to create a roof lantern that perfectly fits your space. Choose your exact dimensions and customise with a range of glazing options, frame styles, and tint choices to match your unique aesthetic. With a slimline profile that lets in plenty of natural light, these lanterns create a bright, airy atmosphere.

Brett Martin Roof Lanterns are designed with performance and safety in mind, featuring a toughened inner pane as standard with the option to upgrade to laminated inner panes for added protection and peace of mind. The thermally efficient double-glazed units and a simple installation process deliver a reliable, low-maintenance solution that keeps your room comfortable and dry.

Explore the potential of Custom Brett Martin Roof Lanterns and start designing your ideal roof lantern today!

Benefits & features

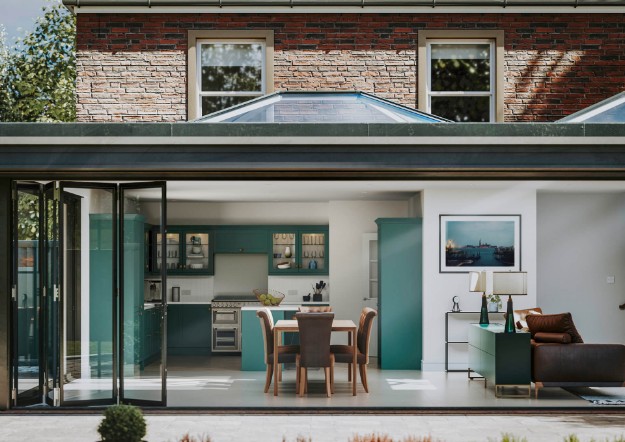

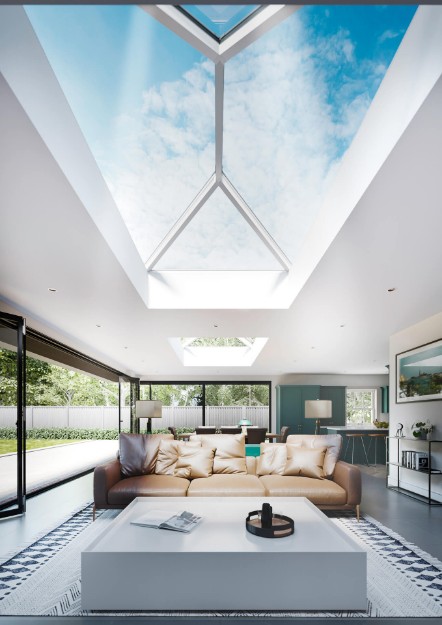

Designed to maximise daylight and complement modern living spaces

The Brett Martin Roof Lantern creates a bright, open feel while delivering strong thermal performance, clean sight lines and practical installation onto a prepared builder’s upstand.

✓

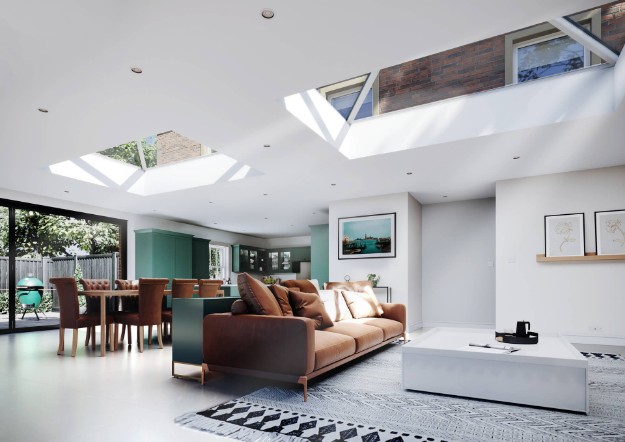

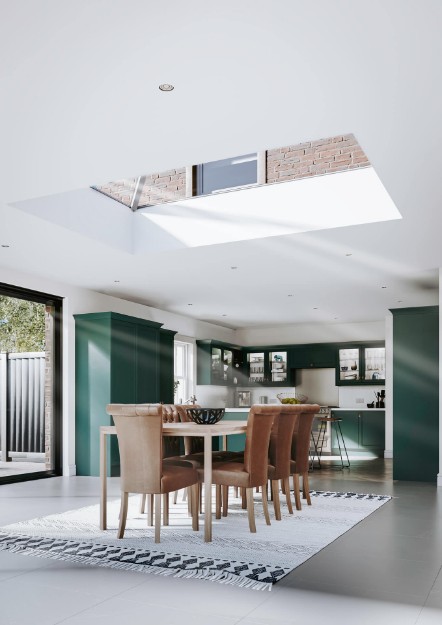

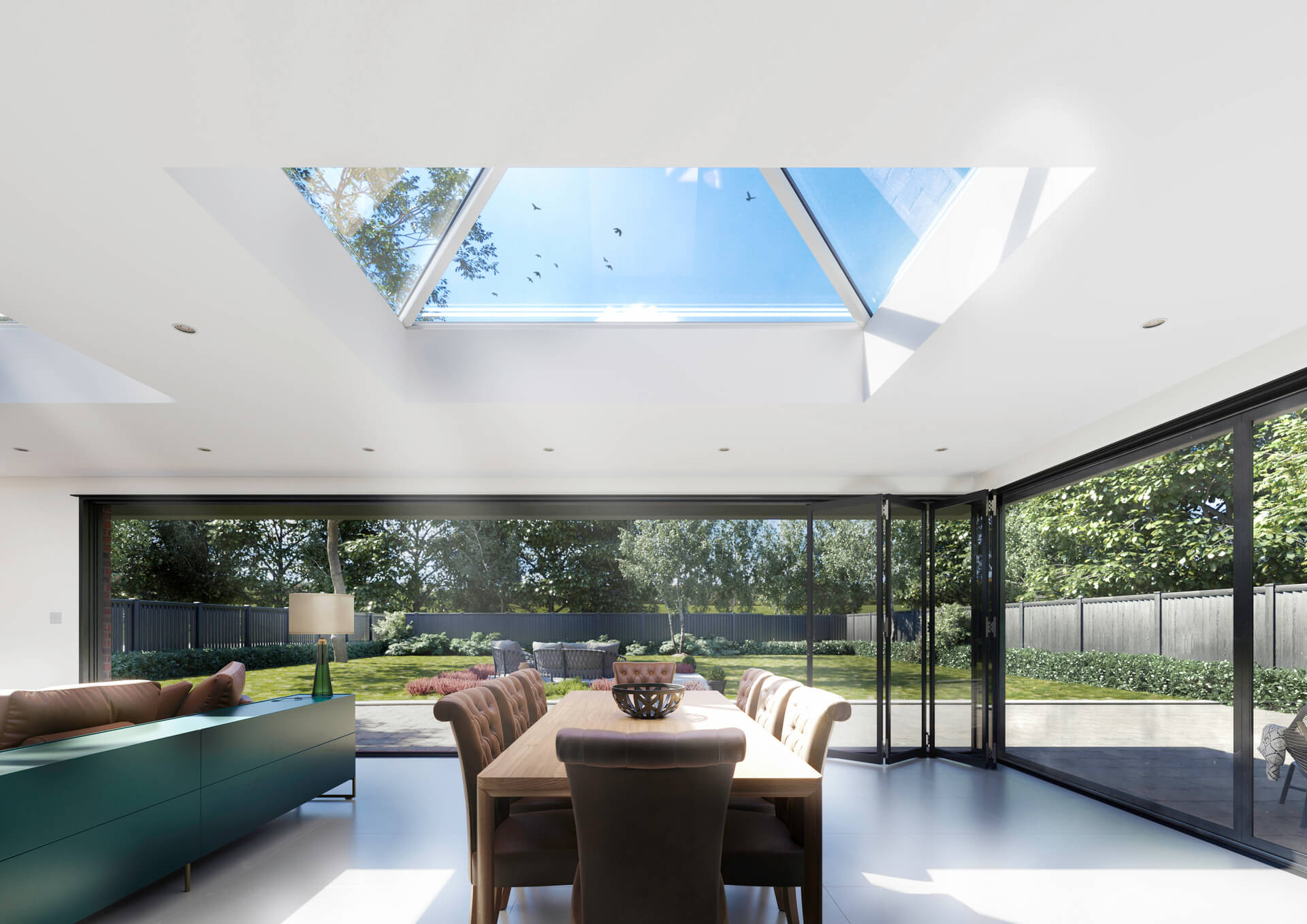

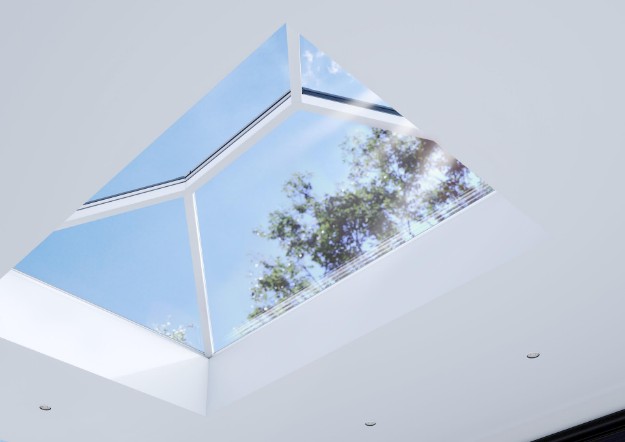

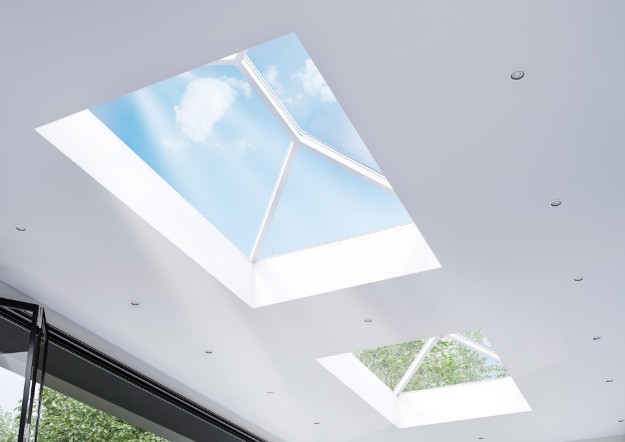

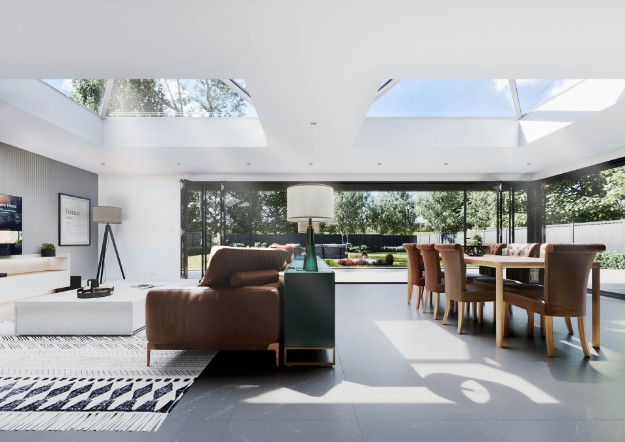

Maximises natural daylight Ideal for bringing daylight into kitchens, dining rooms and open-plan extensions.
✓

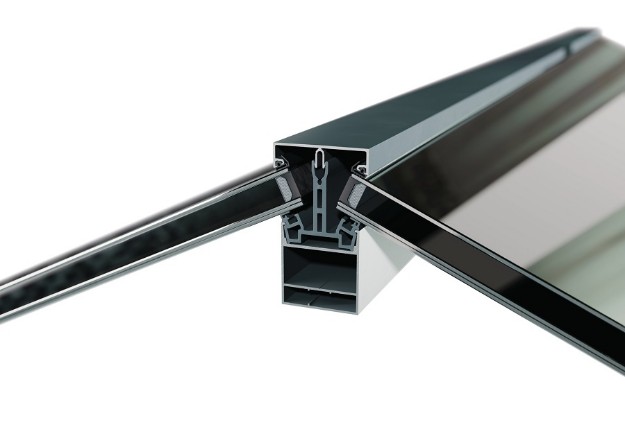

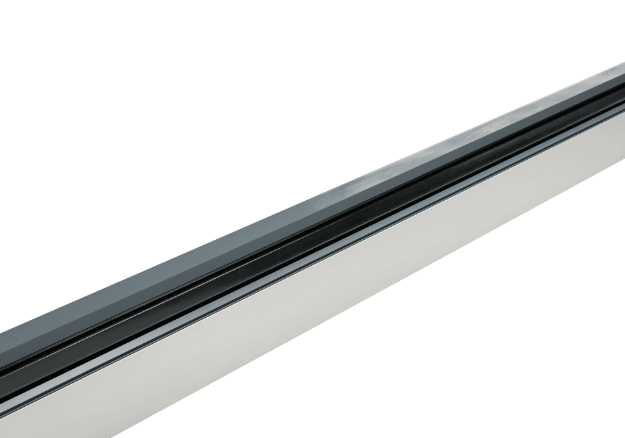

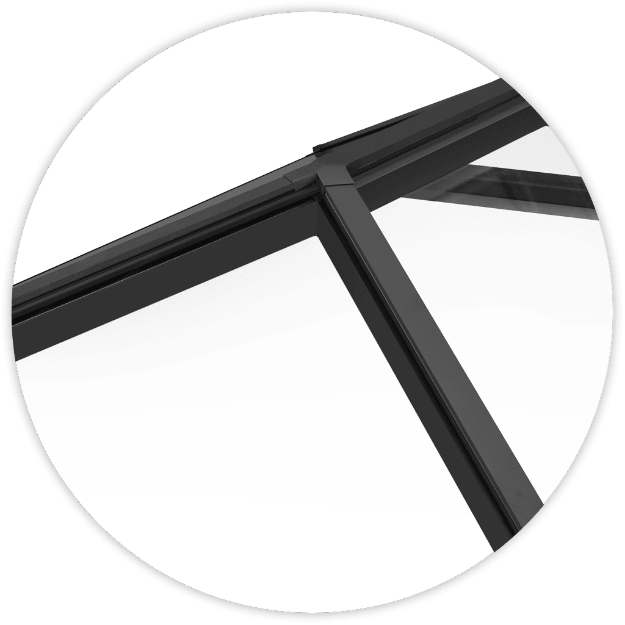

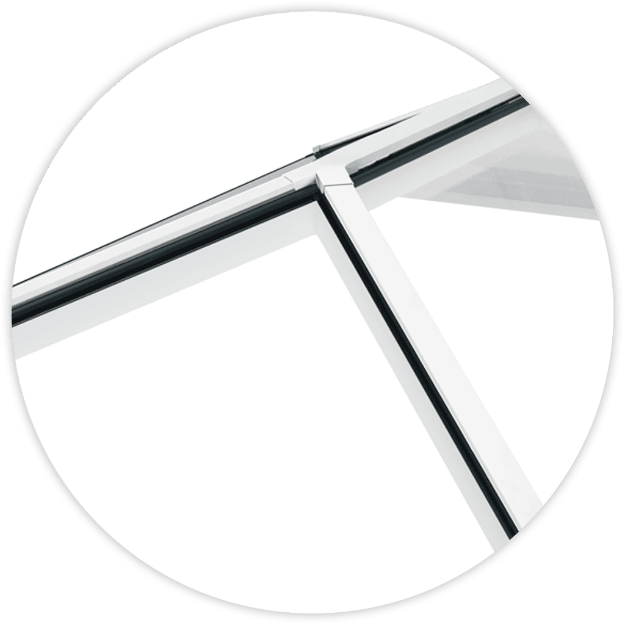

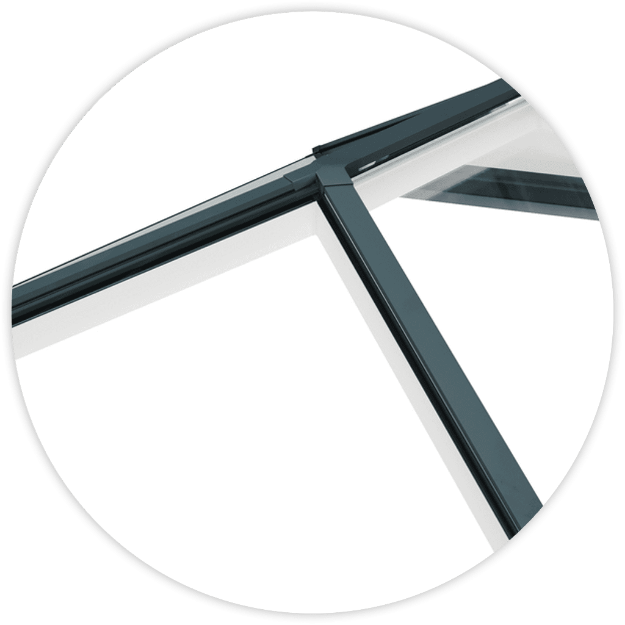

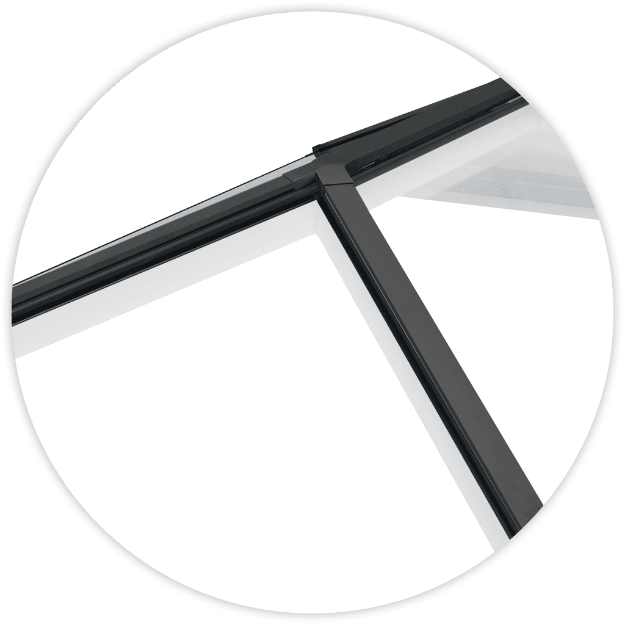

Slim aluminium profiles Clean sight lines help maximise the visible glass area and create a premium finish.
✓
Thermal performance Thermally broken aluminium frame and Low-E double glazing help reduce heat loss.
✓
Self-cleaning outer glass Helps rainwater break down and remove surface dirt, reducing maintenance.

Key features

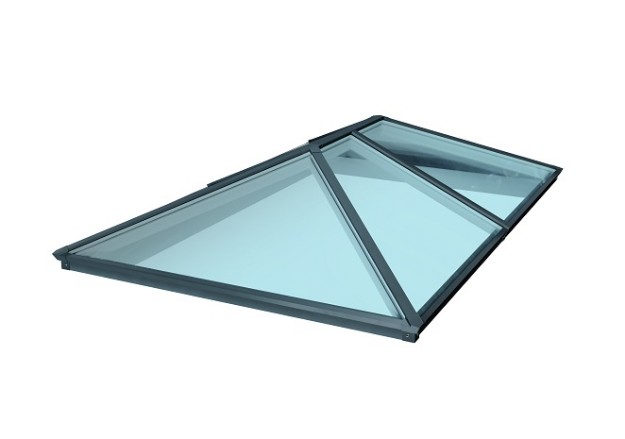

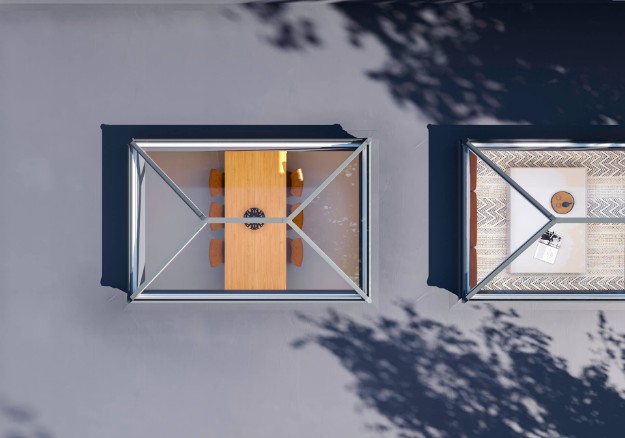

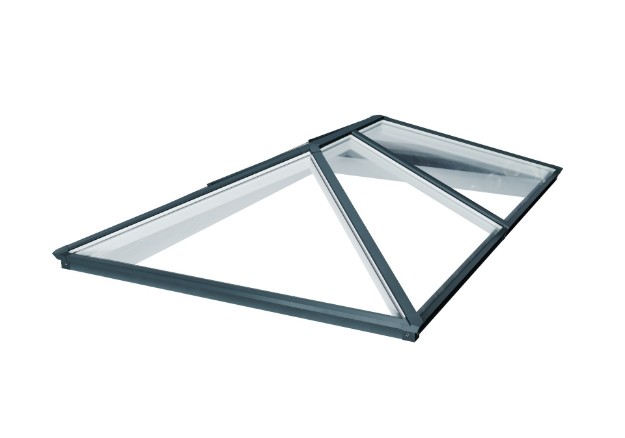

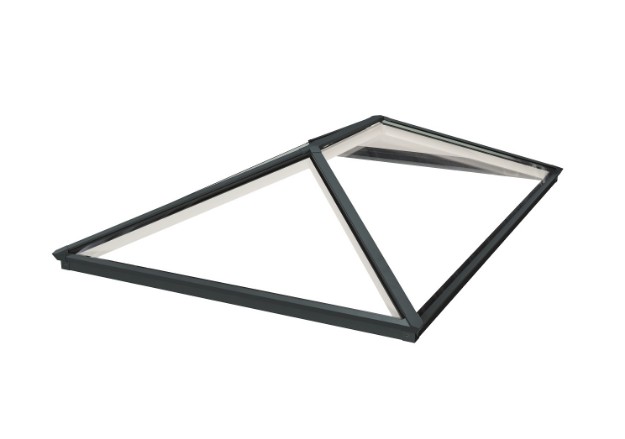

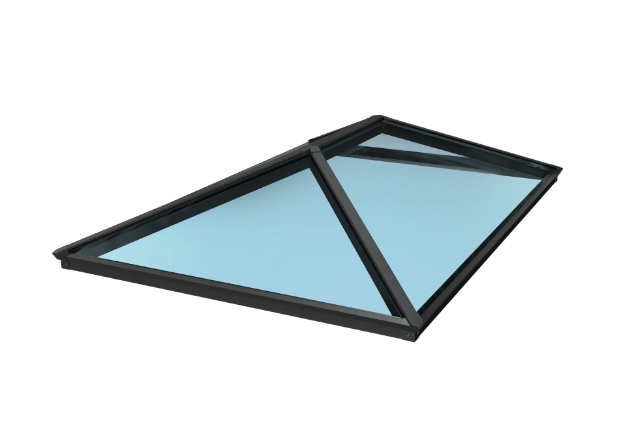

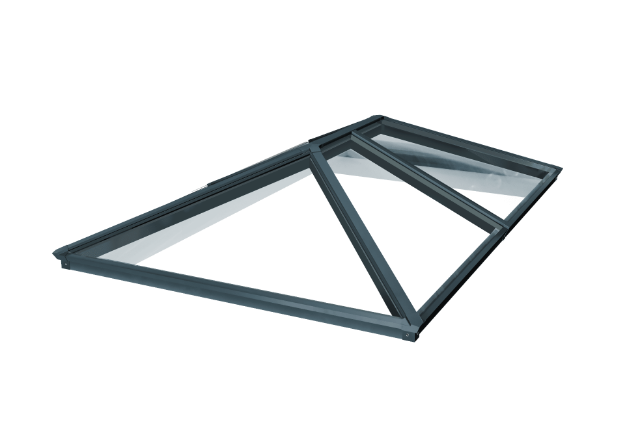

4-pane or 6-pane layouts Choose a modern Contemporary layout or a more traditional Classic appearance.
9 standard sizes Available from 1500mm × 1000mm to 3000mm × 2000mm.
UK manufactured Manufactured by Brett Martin Daylight Systems.
10-year warranty Supplied with a 10-year manufacturer warranty.
Toughened glass as standard Supplied with a toughened inner pane as standard.
Laminated option available Optional laminated inner pane for enhanced overhead safety.

Choosing between glass options?
Select toughened or laminated glass depending on the project requirements and overhead safety preference.

Configure options
Installation guidance

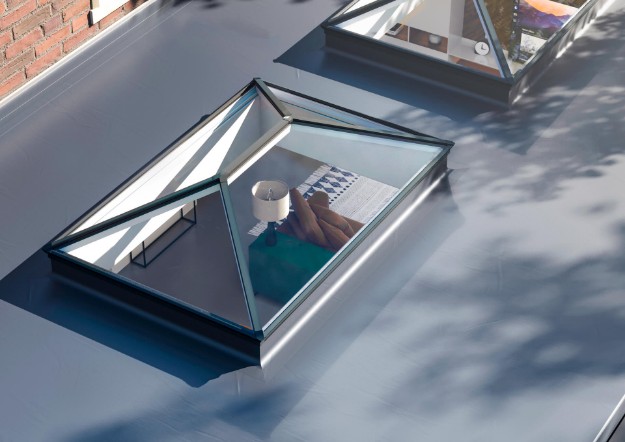

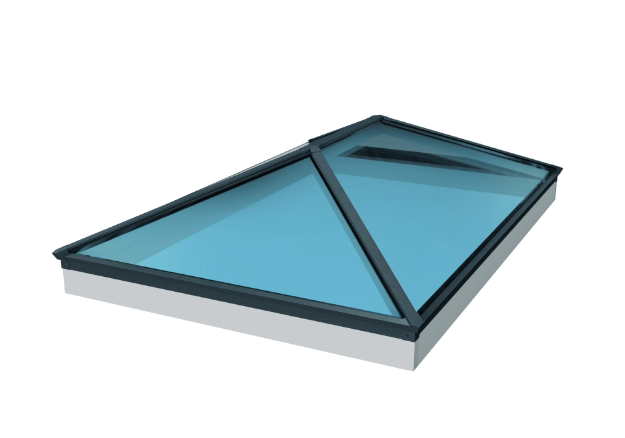

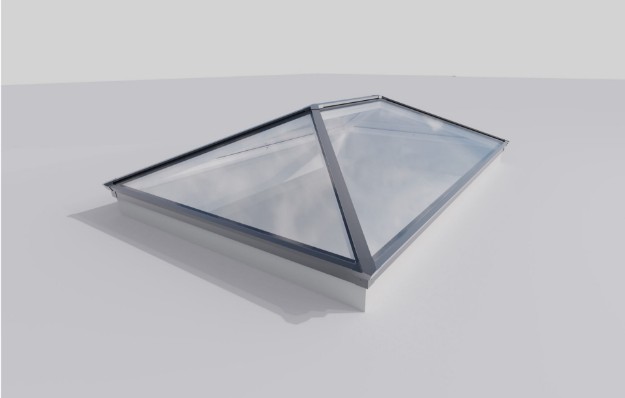

Designed for installation onto a prepared builder’s upstand

The Brett Martin Roof Lantern is engineered for straightforward installation on flat or low-pitch roofs. It should be fitted by competent roofing contractors in line with the official installation guide and relevant safety guidance.

✓

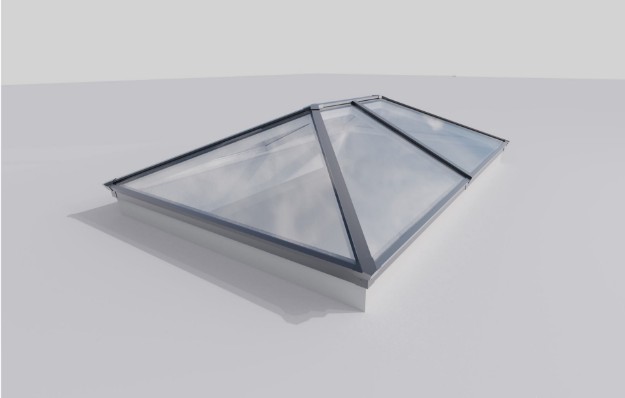

Builder’s upstand Designed to mount directly onto a fully insulated and weathered builder’s upstand.
✓
External upstand dimensions The ordered roof lantern size should match the external upstand dimensions.
✓
0° to 5° upstand pitch Suitable for upstand pitches from 0° to 5°. A level upstand is recommended for appearance.
✓
Minimum upstand requirements Minimum upstand height 150mm. Minimum upstand width 85mm for suitable fixing.

Installation checklist

Use competent roofing contractors and follow the Brett Martin installation guide.
Carry out a suitable risk assessment and fall-protection plan before work begins.
Install onto a fully insulated and weathered builder’s upstand.
Ensure the roof covering dresses up the sides and over the top of the upstand.
Provide a level, obstruction-free bearing surface for the roof lantern.

Important safety note

Roof lanterns and rooflights should be considered fragile during installation. Suitable fall-protection measures should be defined in line with CDM regulations and Rooflight Association guidance.

Where blinds or other fittings are installed in the lightwell, position them as far as practicable from the glass and preferably choose light colours to help reduce thermal stress risk.

Laminated vs toughened inner panes

Toughened inner pane Standard option for roof lantern installations where toughened safety glass is suitable.
Laminated inner pane Helps hold the glass together if damaged, reducing the risk of glass falling into the space below.
Project assessment Glass choice should be considered against the project location, use and relevant guidance.

Installation video

Watch the installation video below for a visual guide. The video should be used alongside the official installation guide before fitting.

Need the full installation instructions?
Download the official Brett Martin Roof Lantern installation guide before fitting.

Download installation guide

Brett Martin Daylight Systems operates a policy of continuous product improvement and reserves the right to alter specifications without notice. The information provided should be used as a guide only and does not form part of a contract or warranty. It is the customer’s responsibility to ensure the product is suitable for the actual conditions of use.

How Your Roof Lantern Is Delivered

  • Delivered kerbside by the Brett Martin transport fleet
  • Glass and frame arrive together on an A-frame
  • Driver can assist with unloading if required
  • Sacrificial foam runners protect the glass during unloading
  • The A-frame is removed by the driver after delivery

Important: Please ensure someone is available on the day of delivery to help unload the roof lantern from the lorry.

Delivery Times

Custom size roof lanterns delivered within approximately 15 working days. Free UK mainland delivery.

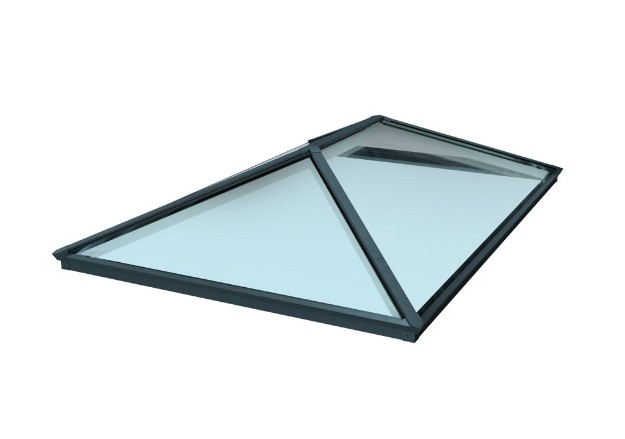

Glass Options

We offer a range of solar self-cleaning glass options:

  • Aqua Solar
  • Neutral Solar
  • Other specifications available on request

Delivery Cost

Delivery is free to all UK mainland addresses.

For non-mainland and remote postcodes, please contact us.

Excluded Delivery Postcodes

We currently do not deliver to the following areas without prior arrangement:

Scotland, Northern Ireland, Channel Islands & Remote Areas

HS, IM, IV, ZE, BT, KA27–28, KWA, PA20–49, PH17–50, PO30–40, TR21–25, LL58–78

Contact our team to check if delivery to your area can be arranged.

Contact Us

Email: info@daylightsystems.com
Phone: +44 (0)24 7660 2022

Write your own review
  • Only registered users can write reviews
*
*
Bad
Excellent
Easy to fit.
First time fitting one of these, it was much easier than other brands i have used. Will use on future projects.
Rebecca | 4/7/2026 9:34 AM
Was this review helpful? Yes No (0/0)
A manager responded to this review
Thank you for your review. We’re delighted to hear the rooflight was easy to fit and compared well against other brands you’ve used. We really appreciate your feedback and look forward to supporting you on future projects.
